Overview

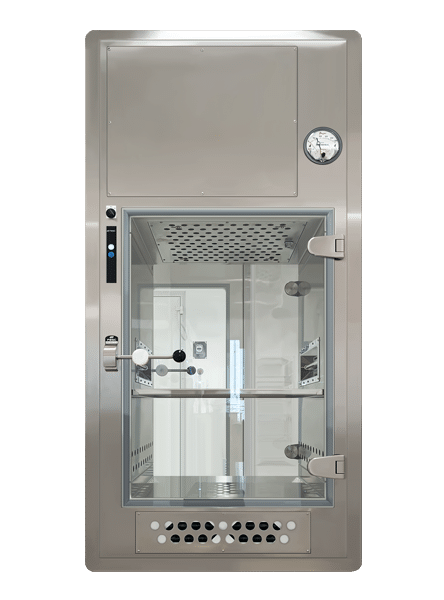

A fan filter pass through hatch is a specialised cleanroom component designed to facilitate the safe transfer of materials between areas of differing cleanliness standards.

By utilising fan filter pass through hatches, facilities can ensure that the transfer of materials between cleanroom areas is conducted safely and efficiently, maintaining high standards of cleanliness and contamination control.

PBSC’s Fan Filter pass through hatch is designed to provide rapid air changes and fast clean-up/recovery times to reduce the waiting time when transferring goods between different room grades. The system is designed to work without any connection to the building’s HVAC system and utilise the air from the adjacent rooms, reducing the costs of HVAC systems and making it ideal for refurbishments.

Read more

Innovation. Design. Quality.

Each hatch is equipped with a fan filter unit (FFU) that provides continuous airflow, ensuring a clean environment inside the hatch during the transfer process.

The Fan Filter hatch has a built-in recirculation fan and HEPA filter system with an adjustable fan speed controller to allow for between 20-300 air changes per hour, subject to the size of the hatch.

The FFU uses HEPA filters to remove particulate contaminants from the air, maintaining the required cleanliness levels within the hatch.

The hatch features PBSC’s dependable interlock system that ensures only one door can be opened at a time, preventing cross-contamination between rooms.

Manufactured from robust, smooth, and non-porous materials such as 304 or 316 stainless steel, with minimal visible fixings or recesses.

A completely frameless glass door leaf provides maximum visibility and natural light into and through the hatch.

Options for internal support shelves in glass or stainless steel, and compatibility with different types of wall constructions.

Available in various sizes and configurations, including single or double door options and right-angle designs, to suit specific cleanroom requirements.

Following on-site installation, PBSC offers a Planned Preventative Maintenance and Servicing Plan with an extensive after-sales support service, including planned preventative maintenance programs, servicing, and spare parts.

READ MORE

Features

  • Concealed Interlock System, with the option for doors to fail open or locked
  • Solid Stainless-Steel Hinge Assemblies
  • Easy Clean Surfaces
  • Terminal HEPA filter, with change from inside the hatch
  • Wall or Trolley Mounted Options
  • Custom Sizes
  • Stainless-Steel
  • Toughened Glass Door Leaf’s
  • No HVAC connection required
  • Flush button sets

Applications

Fast clean-up/recovery time

Reliable reduction of cross-contamination and pressure loss...

Designed to work without an internal connection to the building's HVAC system, ideal for many different refurbishment cleanroom facilities.

* Pharmaceutical Manufacturing: Ensures safe and sterile transfer of materials between different cleanroom zones.

* Biotechnology: Maintains stringent cleanliness standards during material transfers in research and production facilities.

* Semiconductor Production: Provides contamination control in environments where particulate matter can affect product quality.

* Food Processing: Helps in maintaining hygiene and preventing cross-contamination in controlled food production areas.

Technical Specification

  • The system can run with either 120V/60hz or 230/50Hz
  • Removal of up to 99.9% of the particles in the air stream
  • Adjustable fan speed controller to allow for between 20-300 air changes per hour
  • 10mm toughened to EN 12150-1
  • Please contact PBSC for specific design options.
  • -
  • PBSC reserve the right to introduce changes in performance, configuration and technology, dimension, weights and materials in the course of technical progress. Images may not be accurate
  • Some of the information/images/equipment described or shown may only be available at extra cost. Features & specifications will vary.

Options

  • Various FFU filter sizes
  • Internal Support Shelves
  • Single or double door leaves up to 6’ W x 7’ H.
  • Recirculating or one pass through air flow
  • Floor mounted unit for trolley pass through
  • Steel or phenolic resin doors
