Overview

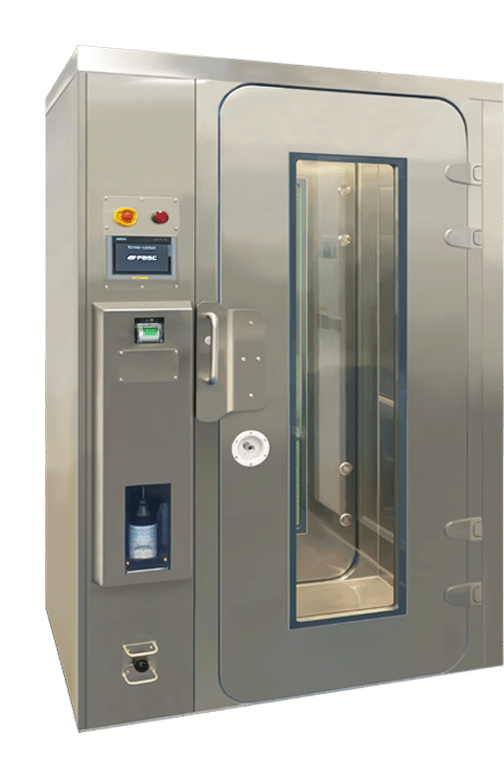

PBSC’s high-level Log6 surface disinfection chamber is a modular design, ideal for material production environments and equipment loads in cleanroom and high containment environments up to BSL4, with a fully integrated decontamination solution utilising market-leading H202 generator manufacturers ensuring regulatory compliance and consumable traceability.

The chamber is intuitive, allowing ease of use for facility operators.

Effective against a wide range of microorganisms and viruses, the HPV decon chamber provides a low heat decontamination solution for heat-sensitive items such as laptops and biologic preparations. The decontamination chamber is a crucial addition to a facility process philosophy for material transfer into or out of the critical environment.

The decontamination cycle is initiated via the colour touch screens on either side of the chamber, which provide operators with in-cycle data from the chamber and H202 generator.

With this integrated chamber, the hydrogen peroxide generator can be either integrated internally on the unit or remotely mounted in the building’s technical area. Both options have a remote bottle housing and printer mounted on the chamber. Custom integration to a multi-room decontamination system is available.

The chamber includes either an S7-1200 or S7-1500 PLC with Ethernet data communication.

Various chamber sizes with pneumatic seal doors are available, from 1m x 1m up to 3m x 5m (WxD)

Other fumigation methods available – Formaldehyde and Chlorine Dioxide

To view our non-integrated option, click here.

For more details please contact PBSC



Features

  • H202 Bottle Housing
  • Flush Maglock with Hidden Proximity
  • Onboard Printer
  • Colour Touch Screen
  • Override Buttons
  • Robust Bumpers
  • No visible fixings
  • Plug and play electrical spares for ease of maintenance
  • Flush threshold allowing easy wheeled access
  • Large Vision Panel, with Flush Glazing
  • Full-service support contracts available to suit GMP and Life Science facilities
  • Full turnkey solution including all validation
  • Range of aeration and air handling options to suit customers’ requirements

Applications

The decontamination chamber is a crucial addition

The HPV chamber with the integrated generator is ideal for various applications where floor space is limited, and the generator isn't required for use with other equipment.

Used globally in laboratory environments to eradicate problematic bacteria, viruses, and fungi on material loads of equipment entering/exiting controlled areas throughout the Pharmaceutical/Bio-Pharmaceutical, Containment, and Biomedical sectors.

PBSC's Integrated Decontamination Chamber is also known as an MD-Ci, Log6 disinfection Chamber, High Containment Chamber, Material Decontamination Chamber, Decontamination MAL, VHP Chamber, Chlorine Dioxide Decontamination, High-Level Disinfection, H202 Chamber, and a Decon Chamber.

Technical Specification

  • Fast Cycles from 45 minutes
  • Log6 decontamination
  • Siemens S7-1200 or S7-1500 PLC, with either 7”, 12” or 15” Comfort Touch Screens
  • Data acquisition and management to allow for 21 CFR Part 11 and Annex 11 compliance
  • H2O2 loaded on the chamber with printer above
  • Internal power sockets, allowing electrical items to be run during the fumigation cycle
  • Please contact PBSC for specific design options.
  • -
  • PBSC reserve the right to introduce changes in performance, configuration and technology, dimension, weights and materials in the course of technical progress. Images may not be accurate.
  • Some of the information/images/equipment described or shown may only be available at extra cost. Features & specifications will vary.

Options

  • Project Specific Approval Drawing
  • DQ package including FDS, P&ID, HDS etc...
  • Installation Services
  • Commissioning of Chamber
  • IQ-OQ
  • Operator Training
  • Gas Cycle Development
  • Performance Qualification
  • 6 or 12 monthly servicing/calibration
  • Option for air handling system without connection to the building HVAC
