PBSC’s Mechanical Seal Door HC-MSD

Overview

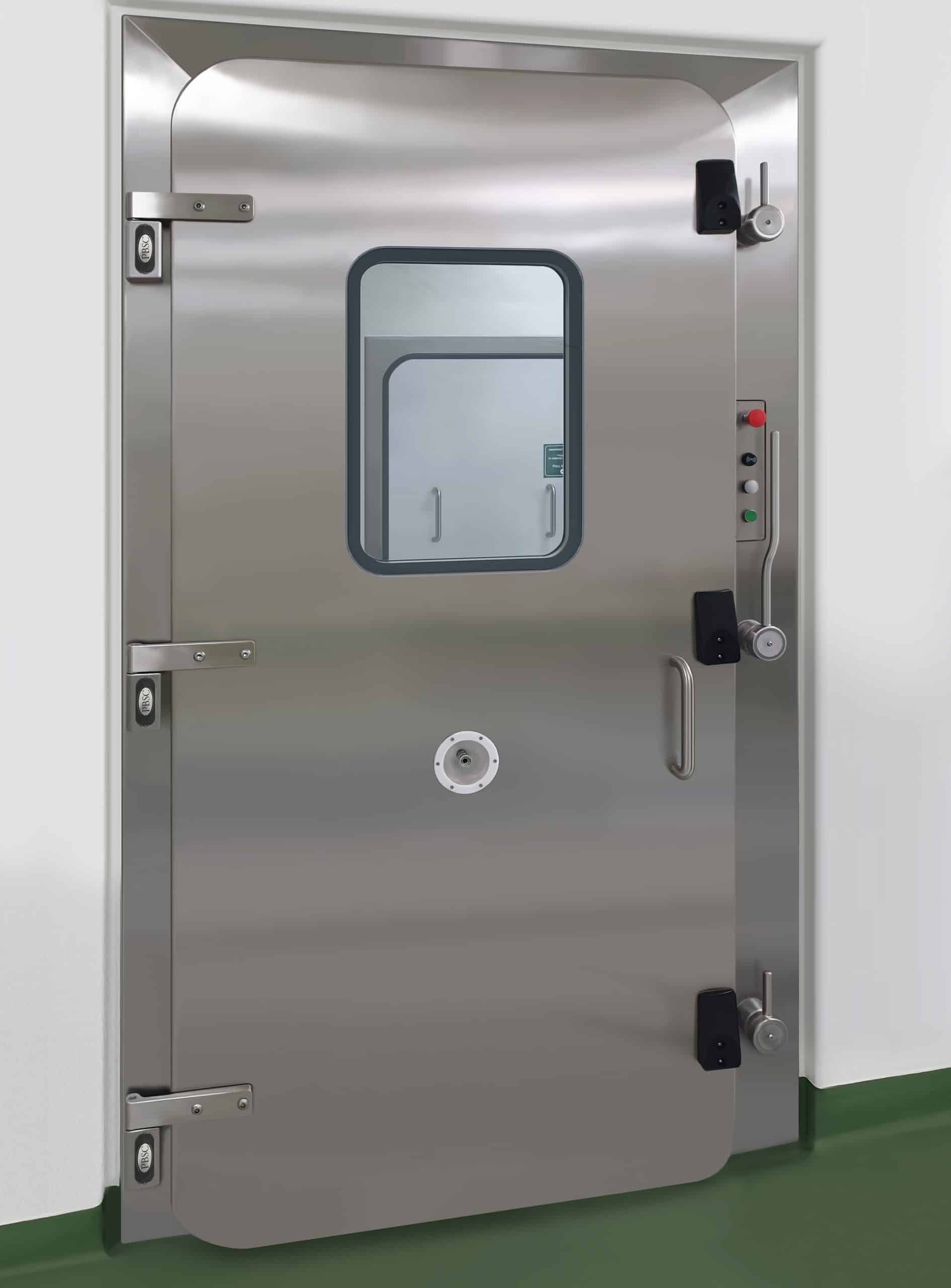

mechanical seal door, pbsc door, high containment door, airtight door, healthcare door, lab door, cleanroom doorThe Mechanical Seal Door set from PBSC creates a dependable airtight barrier by using a strong flexible seal, compressed against the doorframe. Manual compression of the seal doesn’t require compressed air, thus providing a fail-safe seal in the event of power failure.

Applicable for all containment applications where high containment is required, such as BSL3 and BSL4 laboratories.

Having a raised threshold creates a natural bund, assisting the containment of liquid during washdown.

Available in stainless steel or machined HPL door leaves, both are tested to 2500PA (10″ W.G.) The door set can be linked to an access control system if required.

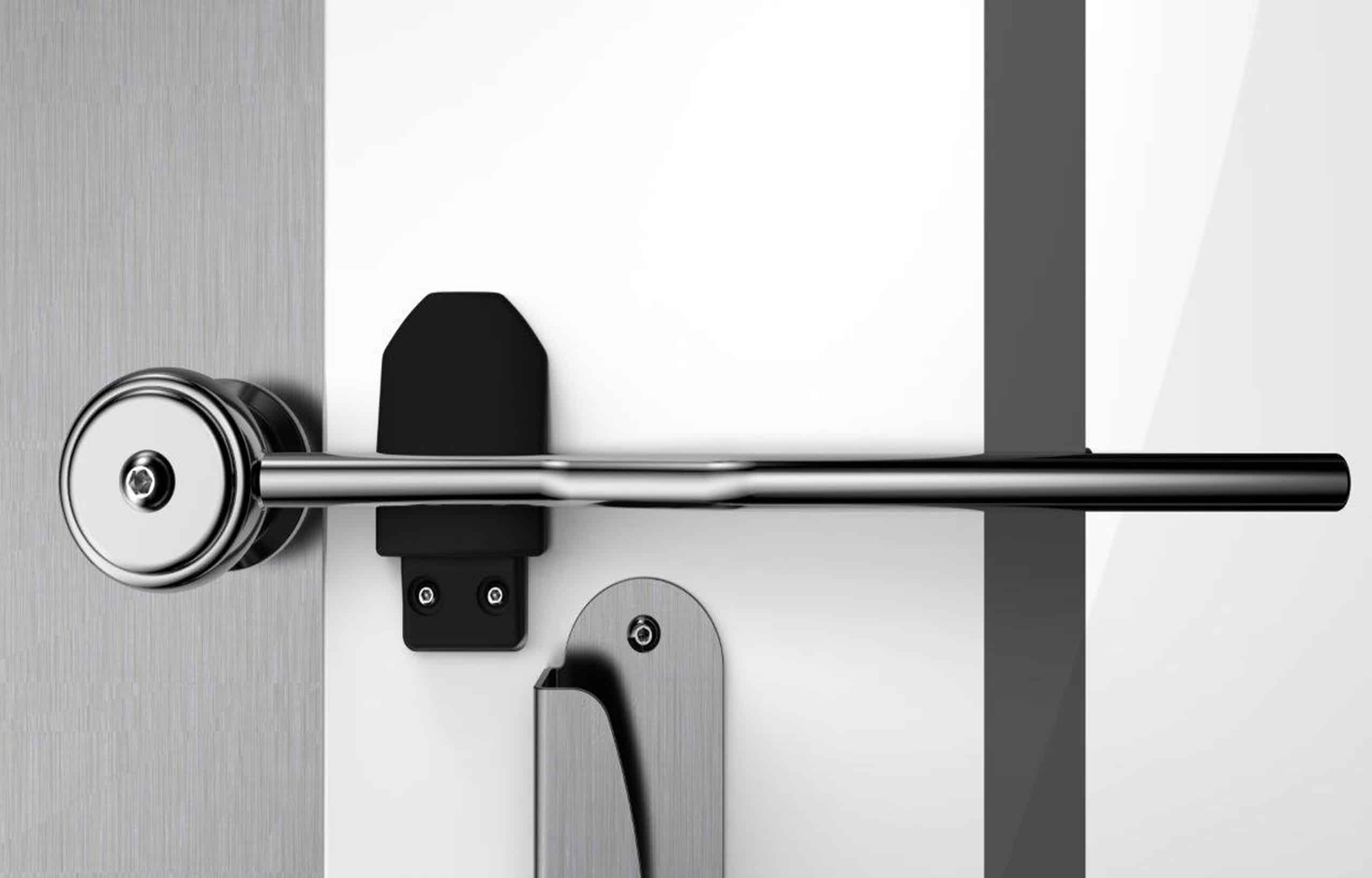

A stainless steel arm is used to compress the combed edge of the frame against the seal, having a one-handed maneuver available on either side of the door which is easy to use by staff.  The mechanical mechanism is mounted in the floor frame, minimizing door weight and improving maintenance

Features

  • Easy One-handed operation, with 3-point compression
  • The mechanism is mounted in the door frame for a more robust design
  • Stainless steel or solid core door HPL leaf
  • Flush glazing to both sides of the door leaf
  • Configurable button sets and LED indicators
  • Robust, fail-safe design
  • Low maintenance
  • Fail-safe seal

Mechanical Seal Door, High Containment Door, Hospital Door, Lab Door, Laboratory Door, Stainless Steel Door, APR Door, Containment. Medical Research, High Containment Door, Clean Room Door, Cleanroom

Options

  • Interlock Systems
  • Vision Panel cover
  • Low-level sampling port
  • Threshold ramp to assist wheel traffic
  • Deeper threshold to create a large bund for washdown or shower areas
  • 304 or 316 Stainless Steel

For more information please contact PBSC at [email protected]
