Overview

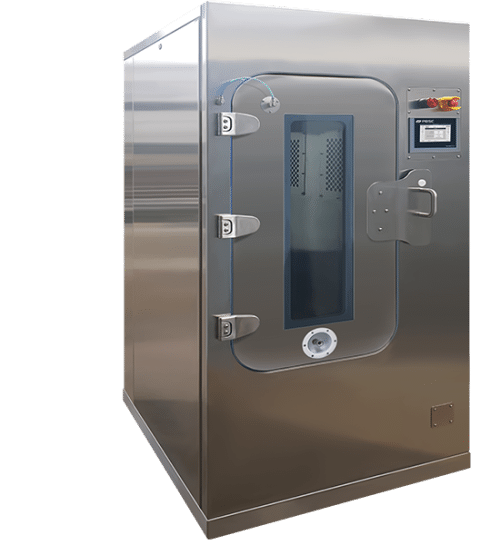

PBSC’s high-level Log6 surface disinfection hatch is a freestanding unit, ideal for material production and equipment loads in cleanrooms and laboratory environments. PBSC can provide fully integrated decontamination solutions from market-leading suppliers ensuring regulatory compliance and consumable traceability.

Read more

Downloads

Datasheet

Features

  • Decontamination cycle times from 30 minutes
  • Point Contact Roller System
  • Flush Maglock with Hidden Proximity
  • 7”, 12” or 15” Siemens Comfort Touch Screens
  • Override Buttons
  • Stainless-Steel Hinges without Visible Fixings
  • No pit in the floor or side access for service required
  • Bespoke trolley and racking designs allowing easy loading/unloading
  • Full-service support contracts available to suit GMP and Life Science facilities
  • Data integrity compliance
  • Large Vision Panel, with flush glazing

Applications

A decontamination hatch with a mobile generator

The decontamination hatch with the mobile generator is ideal for various facility applications. Used globally in facilities to eradicate problematic bacteria, viruses and fungi on material loads of equipment entering/exiting controlled areas throughout the Pharmaceutical/Bio-Pharmaceutical, Containment and Biomedical sectors. For an integrated solution see the MD-Hi model.

A mobile decontamination generator allows for use in other equipment and room decontamination.

PBSC's Decontamination Hatch can also be known as a Transfer Hatch, Pass Box, Pass Thorough, Through Box, Trolley Box, Decontamination Transfer, Decon Hatch, Decon Transfer and a Decon Pass-Through.

Technical Specification

  • Fast Cycles from 30 minutes
  • Log6 decontamination
  • Siemens S1200 or S1500 PLC, with either 7”, 12” or 15” Comfort Touch Screens
  • Data acquisition and management to allow for 21 CFR Part 11 and Annex 11 compliance
  • Turnkey solution including all validation
  • Standard sizes (WxHxD) 600 x 1200 x 1100mm 900 x 1200 x 1100mm
  • PBSC reserve the right to introduce changes in performance, configuration and technology, dimension, weights and materials in the course of technical progress. Images may not be accurate.
  • Some of the information/images/equipment described or shown may only be available at extra cost. Features & specifications will vary.
  • Please contact PBSC for specific design options.

Options

  • Project Specific Approval Drawing
  • DQ package including FDS, P&ID, HDS etc
  • Installation Services
  • Commissioning of Hatch
  • IQ-OQ
  • Operator Training
  • Gas Cycle Development
  • Performance Qualification
  • 6-12 months-servicing/calibration
  • Customised Racking
  • Range of air handling options
