Overview

PBSC’s high-level Log6 surface disinfection hatch is a freestanding unit, ideal for material production and equipment loads in cleanrooms and laboratory environments.

PBSC can provide fully integrated decontamination solutions from market-leading suppliers ensuring regulatory compliance and consumable traceability. The hatch operation is intuitive allowing ease of operation for facility operators.

Read more

Downloads

Datasheet

Features

  • Decontamination cycle times from 30 minutes
  • Point Contact Roller System
  • H202 Bottle Housing
  • Flush Maglock with Hidden Proximity
  • 7”, 12” or 15” Siemens Comfort Touch Screens
  • Override Buttons
  • Stainless-Steel Hinges without Visible Fixings
  • No pit in the floor or side access for service required
  • Bespoke trolley and racking designs allowing easy loading/unloading
  • Full-service support contracts available to suit GMP and Life Science facilities
  • Data integrity compliance
  • Large Vision Panel, with Flush Glazing

Applications

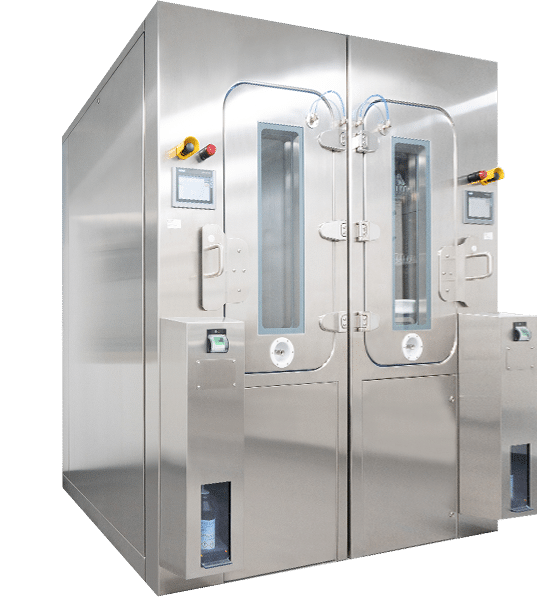

Decontamination Hatch MD-Hi

The decontamination hatch with the integrated generator is ideal for various facility applications.

Used globally in facilities to eradicate problematic bacteria, viruses and fungi on material loads or equipment entering/exiting controlled areas throughout the Pharmaceutical/Bio-Pharmaceutical, Containment and Biomedical sectors.

Where you would like to be able to use the generator for other equipment, see the MD-H model.

PBSC's Integrated Decontamination Hatch can also be known as a Transfer Hatch, Pass Box, Pass Thorough, Through Box, Trolley Box, Decontamination Transfer, Decon Hatch, Decon Transfer and a Decon Pass-Through.

Technical Specification

  • Fast Cycles from 30 minutes
  • Log6 decontamination
  • Siemens S7-1200 or S7-1500 PLC, with either 7”, 12” or 15” Comfort Touch Screens
  • Data acquisition and management to allow for 21 CFR Part 11 and Annex 11 compliance
  • Turnkey solution including all validation
  • H2O2 loaded on the hatch with printer above
  • Standard sizes (WxHxD) 600 x 1200 x 1100mm and 900 x 1200 x 1100mm
  • PBSC reserve the right to introduce changes in performance, configuration and technology, dimension, weights and materials in the course of technical progress. Images may not be accurate.
  • Some of the information/images/equipment described or shown may only be available at extra cost. Features & specifications will vary.
  • Please contact PBSC for specific design options.

Options

  • Project Specific Approval Drawing
  • DQ package including FDS, P&ID, HDS etc
  • Installation Services
  • Commissioning of Hatch
  • IQ-OQ
  • Operator Training
  • Gas Cycle Development
  • Performance Qualification
  • 6-12 months-servicing/calibration
  • Customised Racking
  • Range of air handling options
