Overview

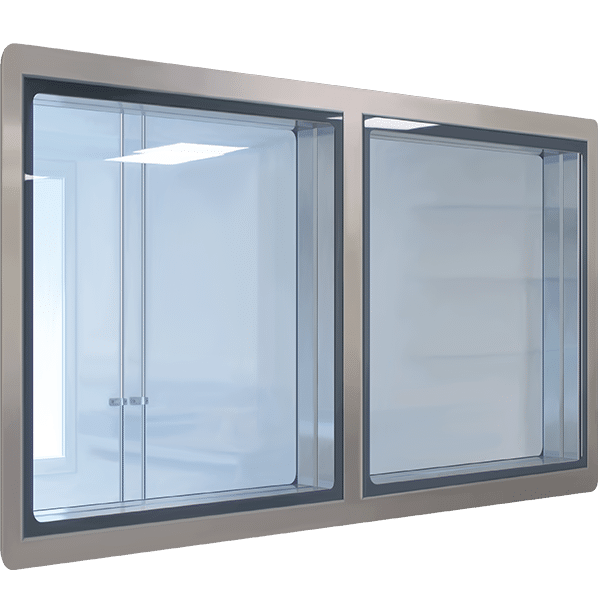

PBSC’s fire rated vision panel, also known as a lab window, hospital window, and cleanroom observation panel, provides a flush-glazed finish with a polished stainless-steel architrave.
The clear fire glass is clamped between the two outer panes of toughened glass, providing a flush finish with no visible fixings to either side.
PBSC provides secure fixings within the unique sub-frame made to suit the wall thickness, fully concealed with stainless-steel reveal liners.
PBSC offers an extensive range of vision panel options which include:
- Double Glazed Vision Panel – Providing a flush glazed finish with no visible fixings to either side made for facilities where it is vital to see or be seen.
- Lead Shielding Vision Panel – Providing up to 12mm lead equivalency and can be used in different applications, including code 5, code 6, code 7, etc.
- Secondary Glazed Vision Panel – PBSC’s secondary glazing vision panels provide flush glazing to the inside of any cleanroom or high containment facility when standard external windows are in use.
- High Containment Vision Panel – Available in double-glazed or single-glazed options and is mechanically sealed to the wall using a compression gasket.
PBSC’s vision panels have been part of an array of projects across the world – Read More
Innovation. Design. Quality
PBSC’s controlled lab windows are tested to BS 476 part 22 and EN 1364-1:1999, providing up to 120 minutes of fire resistance, and available in either a 304 or 316 stainless steel construction.
PBSC’s vision panels are bespoke to suit all wall types and are available in many different versions. These include mullions, lead shielding, and fire rated versions.
PBSC also offers cleanroom vision panels complete with magnetically operated Venetian or roller blinds.
The vision glass panels are available in a version to provide up to 90 minutes of insulation, tested to BS 476 part 22.
Made bespoke measurements to retrofit into exisiting buildings, also available in standard sizes for new constructions.
Tripple glazed stainless steel construction providing up to 120 minutes fire resistance.
Following on-site installation, PBSC offers a Planned Preventative Maintenance and Servicing Plan with an extensive after-sales support service, including planned preventative maintenance programs, servicing, and spare parts.
Features
- Flush Glazed Vision Panels to Both Sides
- Clear Fire Glass
- Overlapping Flanges to Both Sides of the Opening
- Screen Printed Borders, Bonded to the Glass
- Made to Fit into Various Wall Thickness
- Secure Fixings within the Unique Sub-Frame
- Providing up to 90 Minutes of Insulation
- Tested to BS 476 Part 22.
- No Visible Fixings
- High Quality, Long Lasting
Applications
Essential in many potentially hazardous facilities where it is vital to see or be seen.
The PBSC vision panel offers a high-quality, long-lasting system that is easy to clean with its flush finish and can present itself in many pharmaceutical, laboratory, biotech, and NHS facilities. Mainly used in buildings where fire rated doors or walls are required for safety reasons.
The Fire Rated Vision Panel is also known as a Glazed Panel, Glazed Vision Panel, Lab Window, Glazed Screen, Hospital Window, Cleanroom Window, Laboratory Window, and Controlled Window.
