Overview

PBSC provides a variety of vision panels that combine functionality with an attractive design, enhancing the aesthetics of your facility. The high-containment APR vision panel also be known as a Hospital Window, Window Panel, High Containment Panel, Lab Window, and APR Vision Panel, is available in Double Glazed, Single Glazed, and Fire-Rated options, featuring a polished stainless-steel frame. It is securely sealed to the wall with a compression gasket for optimal performance. Additionally, PBSC offers window systems finished with structural silicone, ensuring a seamless and professional wall integration.

PBSC’s vision panels are designed for versatile installation into cast concrete, concrete block, or stud walls. To ensure optimal performance, pressure test points are included for quick and easy verification of the gasket seal integrity.

Extensive test data, detailing performance under pressure differences of up to 2000 Pa, is readily available from our technical department.

PBSC also offers security and fire-rated vision panel options to meet specific requirements. The security window is certified up to SR5, tested, and approved by BRE for robust protection. Fire-rated options are available with up to 120 minutes of integrity, with additional options providing insulation for enhanced safety and performance.

PBSC also offer Cleanroom vision panel options including:

  • Double Glazed Vision Panel – Providing a flush glazed finish with no visible fixings to either side made for facilities where it is vital to see or be seen.
  • Lead Shielding Vision Panel – Providing up to 12mm lead equivalency and can be used in different applications, including code 5, code 6, code 7, etc.
  • Fire Rated Vision Panel – Tested to BS 476 part 22 and EN 1364-1:1999, providing up to 120 minutes fire resistance with a flush glazed finish.
  • Secondary Glazed Vision Panels – Where standard external windows are used, PBSC can offer a secondary glazed vision panel providing a flush glazed finish.
  • Emergency Escape Panel –  Also known as a breakout panel and provides a quick escape from a cleanroom or containment-controlled environment.

Please contact PBSC for specific information on these specialist windows.

PBSC’s vision panels can also be known as a Hospital Window, Window Panel, High Containment Panel and APR Vision Panel.

Innovation. Design. Quality.

Installed into:

  • Cast concrete
  • Concrete block
  • Stud walls



Mechanically sealed to the wall using a compression gasket







Available in:

  • Double glazed – HC-Vd
  • Single glazed – HC-Vs
  • Fire Rated – HC-Vf



With a polished stainless steel frame.







Following on-site installation, PBSC offers a Planned Preventative Maintenance and Servicing Plan with an extensive after-sales support service, including planned preventative maintenance programs, servicing, and spare parts.



READ MORE

Features

  • Flush glazing (double glazed version)
  • Simple pressure testing
  • Double glazed to provide redundancy for sealing
  • Providing a friendly and functional environment
  • Easy to clean and maintain
  • Fast and easy checking
  • Polished stainless-steel frame

Applications

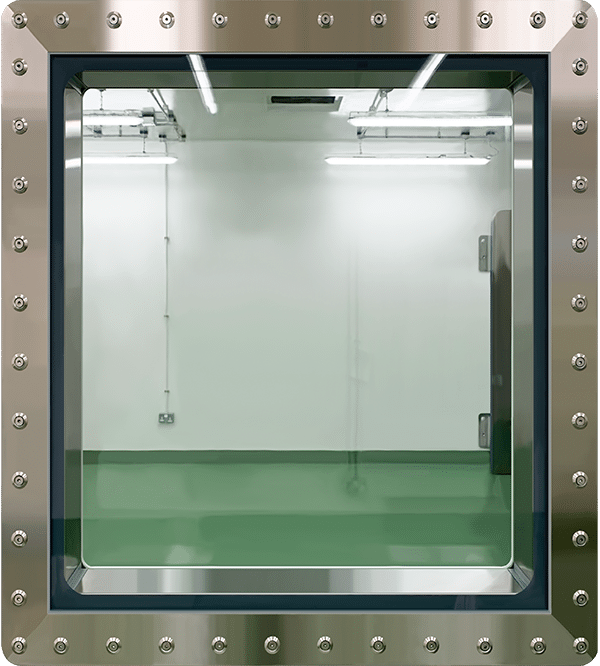

APR Vision Panel HC-Vd/s/f

Vision panels are essential in controlled environments from BSL2 to BSL4-Ag to provide visibility and a friendly and functional open space atmosphere.

Custom designs are available on request.

Technical Specification

  • Typical pressure loss at SAT of 38Pa over 30 minutes, with a starting pressure of 500Pa
  • -
  • PBSC reserves the right to introduce changes in performance, configuration and technology, dimension, weights and materials in the course of technical progress. Images may not be accurate.
  • Some of the information/images/equipment described or shown may only be available at extra cost. Features & specifications will vary.
  • Please contact PBSC for specific design options.

Options

  • Fire rated
  • Security Rating up to and including SR5
  • Mullion for larger openings
  • Acoustic upgrades
  • Venetian or roller blinds
  • 304 or 316 stainless-steel construction
