Overview

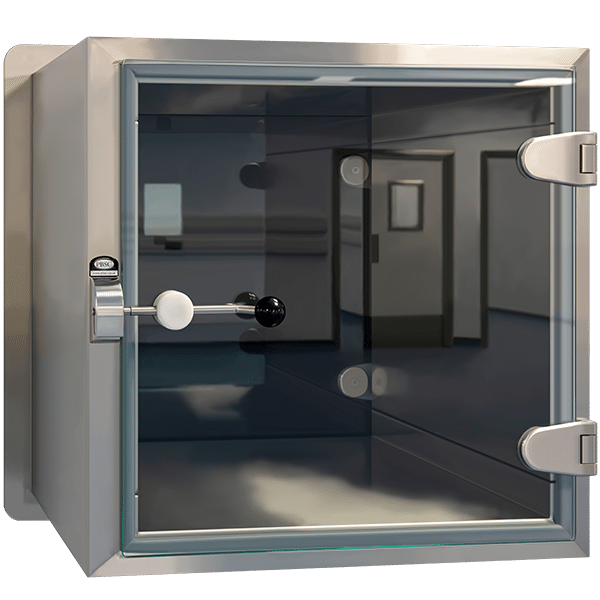

PBSC’s transfer hatches, also known as a pass box, pass chamber, or pass through, are among the best on the market. These hatches help reduce the risk of physical movement or transfer of harmful bacteria and pressure loss when transferring equipment between different classification areas, within cleanrooms, or in controlled environments.
The hatches from PBSC are designed for easy cleaning and maintenance, making them great for passing products, equipment, or even paperwork between sterile and non-sterile areas while preserving the integrity of each environment.
Effective sealing is crucial to prevent the exchange of air and contaminants between the two environments connected by the pass through hatch. PBSC’s interlocking mechanism ensures an airtight seal when the door is closed.
Used within many cleanroom facilities, providing a clean and beautiful hatch for maximum impact.
The minimal visible fixings or recesses on the hatch facilitate easy cleaning, and the completely frameless glass door leaf provides a beautiful look that gives maximum visibility and natural light into and through the hatch.
PBSC’s transfer hatches are cost-effective for a variety of projects thanks to innovative materials and construction techniques.
Having no internal protruding or recessed areas in the design, thus preventing bacterial growth, allowing for complete sterilization during clean-down.
PBSC offers an extensive range of hatch options which include:
- Trolley/Floor Mounted Hatch – Designed to allow wheeled trolleys to be passed between different grade rooms and fixed directly to the finished flooring.
- Fire Rated Hatch – When a pass through hatch needs to be located in a firewall, PBSC can provide a tested and certified wall or floor mounted solution.
- Fan Filter Hatch – Designed to provide rapid air changes and fast clean-up/recovery times to reduce the waiting time when transferring goods between different grades of room.
- High Containment Barrier Hatch – These hatches are used in a broad range of applications from pharmaceutical facilities BSL2 through to BSL4. At the higher end of the containment spectrum, PBSC’s hatches can be fitted with pneumatic seals and sophisticated access and control options.
PBSC’s hatches have been part of an array of projects across the world – Read More
Innovation. Design. Quality
Designed with PBSC’s unique mechanical interlocking door system which comes as standard, meaning that both doors cannot be opened simultaneously. The interlock mechanism ensures hatch “air” is given time to recover before the other door can be opened and is mounted between the two skins of the hatch, to reduce the risk of tamper.
Also available as an electro-mechanical system to provide timed interlocks for air purge and UV light cycles, etc…
This prevents direct airflow, minimizing the risk of contamination and maintaining room pressure during the transfer process.
Interlocking mechanisms ensure that one door remains closed while the other is open, maintaining the integrity of each environment and facilitating a quick transfer of goods between different grades of rooms.
PBSC’s pass through hatches are designed to minimize airflow between the connected environments during material transfer.
The hatch air is “cleaned” following use to either the filtered air level of the supply or the higher classification room.
Made from durable smooth non-porous materials, with a choice of:
Polished stainless steel (standard offering) – The hatch shell is manufactured from satin polished stainless steel of double skin construction, all welds will be ground off and polished to match with internal folded corners.
Phenolic resin – The hatch shell is constructed of 16mm (5/8”) thick, matt white, phenolic resin (High Pressure Laminate HPL) with no visible fixings. Internal junctions are finished with a neat silicone fillet and all external edges will be raised to form a smooth, easily cleaned unit.
Powder-coated steel – The hatch outer shell is manufactured with a powder-coated zintec and the inner shell of the double skin construction is in stainless steel, all welds will be ground off and polished to match with internal folded corners.
Compatible with all types of walls and construction and available with glass or solid doors depending on privacy requirements.
Available with internal support shelves in either glass or stainless steel and stainless steel support frames.
Every hatch comes in various sizes and configurations to accommodate the end user and specific application requirements.
Single or double door configuration options are available including right angle designs.
The refined design is robust and provides easy cleaning and maintenance.
PBSC’s hatches are designed to be easy to clean and maintain. This makes it great for passing products, equipment, or even paperwork between sterile/clean areas and non-sterile/dirty areas.
Following on-site installation, PBSC offers a Planned Preventative Maintenance and Servicing Plan with an extensive after-sales support service, including planned preventative maintenance programs, servicing, and spare parts.
Features
- Robust Mechanical Interlock as Standard
- Stainless-Steel or Phenolic Resin Construction
- Minimal Visible Fixings
- Robust PBSC Cast Stainless Steel Hinge Assemblies
- Toughened Glass Door Leaf’s
- Easy Clean Surfaces
- Frameless Glass Door Leaf
- No Internal Protruding Or Recessed Areas
- 2 or 4 Support Brackets
- UV Lights
Applications
Less risk of lower classification air entering the higher classification room.
The advantages of ventilated hatches are many....
Pass through hatches play a critical role in maintaining the cleanliness of cleanrooms and controlled conditions of environments with different cleanliness requirements. Their use helps ensure that materials and equipment can be transferred between areas without compromising the integrity of each space.
