Overview

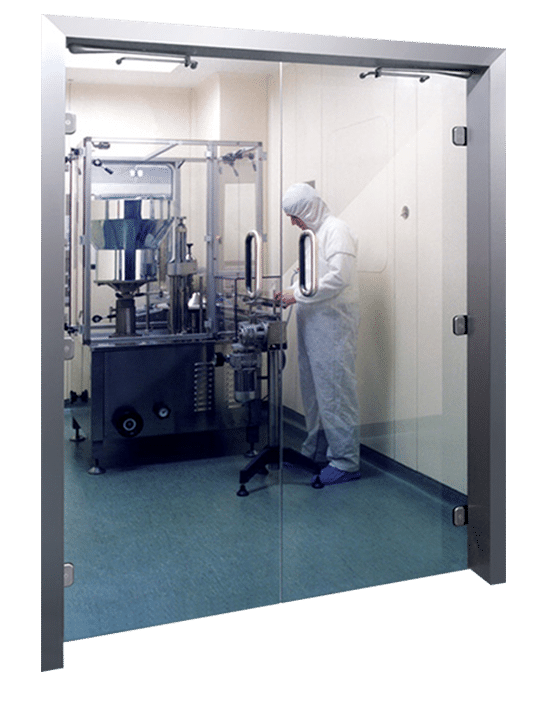

PBSC’s cleanroom glass doors incorporate the renowned PBSC wrap-around door frame, with its clean and robust design.

The combination of a toughened glass door leaf within the clean lines of the stainless-steel frame will undoubtedly give a showpiece appearance to your facility whilst providing excellent functionality.

Read more

Downloads

Datasheet

Features

  • Full Wrap Around Shroud / Architrave – Stainless or Powder Coated
  • Frameless Tempered Glass Door Leaf (10mm thick)
  • Purpose built solid stainless-steel hinge to provide easy cleaning and opening up to 170°
  • Custom frame sizes to suit opening
  • Made to suit specific wall thicknesses
  • Flush Maglock in frame
  • No Rebate on Frame – Maximum Clear Opening

Applications

PBSC's Glass Door set renowned for its excellent clean ability is the preferred option within a laboratory environment.

Available with the PBSC concealed closer system, which comprises of a single closer arm in solid stainless steel and a closer sealed into the door frame, thus removing the ledges created and the difficult to clean arms on the conventional surface mounted closers.

The glass door set is purpose-built for laboratories with minimal visible fixings and is available as a single or double door construction and can be bespoke to fit existing walls.

PBSC's Glass Door can also be known as a Hospital Door, Cleanroom Door, NHS Door and Tempered Glass Door.

Technical Specification

  • Maximum Structural Opening Single Door: 1250mm Wide x 2500mm High
  • Maximum Structural Opening Double Door: 2500mm Wide x 2500mm High
  • 10 mm Toughened Leaf to EN 12150 1
  • Door Weight: 25kg/m2
  • Door Closer: Concealed or Surface Mounted Options. EN2-EN6
  • PBSC reserve the right to introduce changes in performance, configuration and technology, dimension, weights and materials in the course of technical progress. Images may not be accurate.
  • Some of the information/images/equipment described or shown may only be available at extra cost. Features & specifications will vary.
  • Please contact PBSC for specific design options.

Options

  • Single, Double or Leaf & 1/2 Door Options
  • Wide Range of Tints, Screen Prints, Printed Films and Etched Glass to Suit the Area
  • Flush Maglock for Interlock Systems
  • Electric / Hydraulic Auto Openers / Closers
